1. Basic Overview

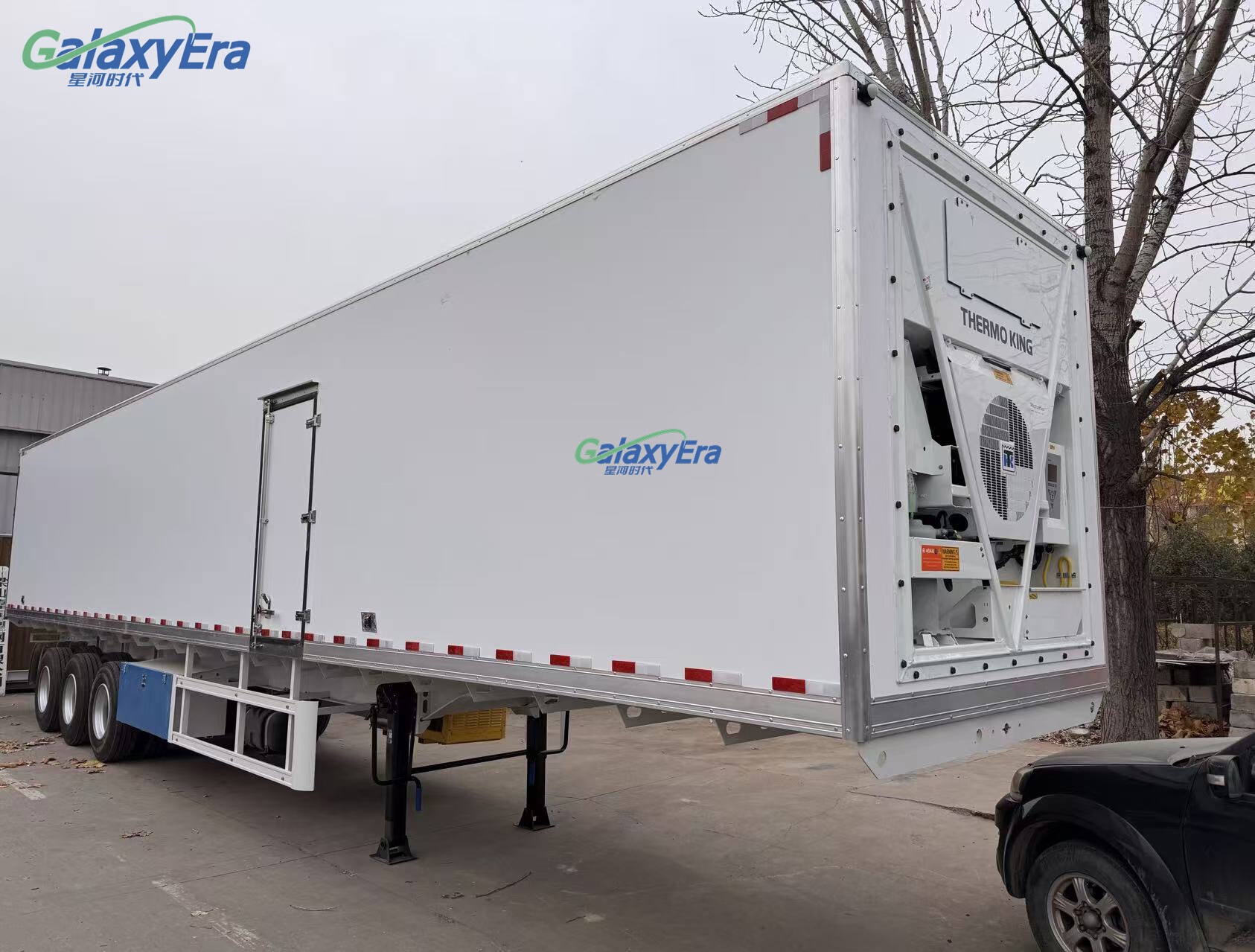

A refrigerated semi-trailer is a specialized transport vehicle designed for temperature-controlled cargo transportation, ideal for perishable goods (e.g., fresh produce, dairy products, frozen food, pharmaceuticals). It integrates a high-performance refrigeration unit, insulated cargo compartment, and robust chassis structure to maintain stable temperatures during long-haul transportation.

2. Core Technical Specifications

Parameter Category Details

Cargo Compartment Dimensions - Standard external dimensions: 13,700mm (L) × 2,550mm (W) × 3,000mm (H)

- Internal dimensions: 13,500mm (L) × 2,450mm (W) × 2,600mm (H)

- Customizable sizes (10m/12m/14m lengths available)

Insulation Performance - Side wall insulation thickness: 80mm–100mm (polyurethane foam core)

- Roof insulation thickness: 100mm–120mm

- Floor insulation thickness: 120mm

- Thermal conductivity coefficient (λ): ≤0.022 W/(m·K)

- Temperature retention: ≤1°C temperature change within 24h (power-off state)

Refrigeration System - Refrigeration unit brand: Carrier Transicold / Thermo King / Bitzer

- Cooling capacity: 18,000 BTU–60,000 BTU (adjustable based on model)

- Temperature control range: -30°C to +20°C (precise control ±1°C)

- Power supply: Diesel engine-driven (independent from tractor) + optional electric standby (for use at parking lots/warehouses)

Payload Capacity - Gross vehicle weight (GVW): 40 tons–60 tons

- Net payload: 28 tons–45 tons (varies by chassis strength and compartment weight)

Chassis & Axle Configuration - Chassis material: High-strength Q345B/Q550 steel

- Axle type: 3-axle air suspension (option: mechanical suspension)

- Tire specification: 12R22.5 tubeless tires (6+1 spare tire)

- Braking system: EBS (Electronic Braking System) + ABS anti-lock braking system

Structural Features - Door type: Rear double swing doors (option: side sliding doors for easy loading/unloading)

- Floor material: Anti-slip aluminum alloy (with ventilation grooves to ensure uniform air circulation)

- Interior accessories: Aluminum alloy cargo rails, LED lighting, temperature monitoring sensor

3. Detailed Performance Advantages

Precision Temperature ControlThe intelligent refrigeration system supports multi-zone temperature control (optional dual-temperature zone design), allowing simultaneous transportation of frozen and fresh goods. The built-in temperature recorder can store data for 12 months, meeting the traceability requirements of food and pharmaceutical logistics.

Energy Efficiency & Environmental ProtectionThe latest generation of refrigeration units adopts variable frequency technology, reducing fuel consumption by 15%–20% compared to traditional models. It complies with Euro V/Euro VI emission standards, suitable for transportation in countries with strict environmental regulations.

Durability & SafetyThe reinforced chassis and anti-corrosion coating (epoxy zinc-rich primer + polyurethane topcoat) ensure a service life of 10–15 years. The EBS braking system shortens the braking distance by 20%, and the emergency temperature alarm function alerts the driver in real time if the compartment temperature exceeds the set range.

Customization Options

Pharmaceutical-grade modification: Equipped with GSP-certified temperature monitoring and alarm systems, meeting the transportation requirements of vaccines and biological products.

Heavy-duty modification: Reinforced floor and chassis for transporting large batches of frozen seafood or meat.

Lightweight modification: Use of aluminum alloy compartment and chassis to increase payload by 3–5 tons.

4. Application Scenarios

Fresh agricultural products: Fruits, vegetables, flowers (temperature requirement: 0°C–10°C)

Frozen food: Ice cream, frozen meat, seafood (temperature requirement: -18°C–-25°C)

Pharmaceuticals: Vaccines, blood products, drugs requiring constant temperature (temperature requirement: 2°C–8°C)

Catering supplies: Central kitchen ingredients, ready-to-eat meals (temperature requirement: 0°C–5°C)
